Description

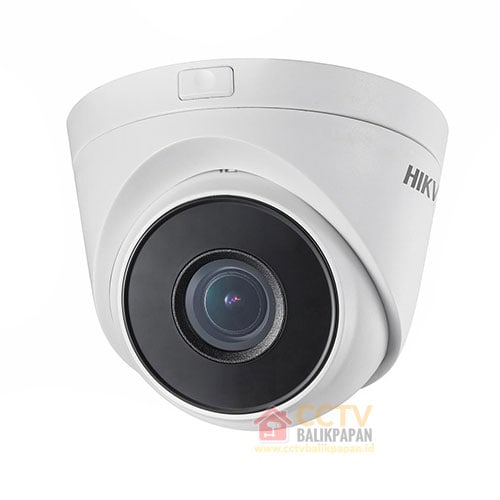

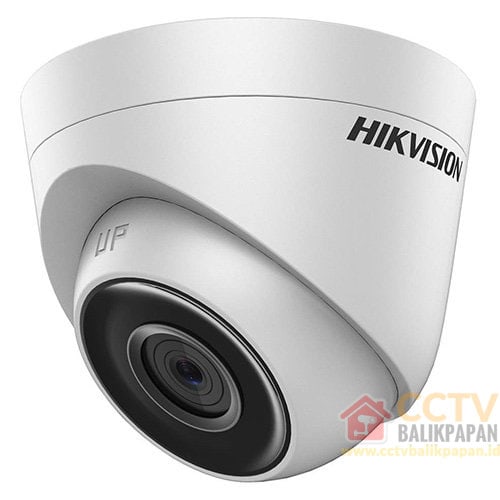

Name	HIKVISION DS-2CD1323G0-I

Standard	IP

Direction adjustment	3-axis
Image sensor	1/2.8″ Progressive Scan CMOS
Sensitivity	0.028 lux @ (F2.0, AGC ON), 0 lx in IR mode
Resolution	1920 x 1080
Frame rate	25 fps at 1920 x 1080 and lower res.
Focal length/viewing angle	2.8 mm / 103^o
Video compression	H.265/H.265+/H.264/H.264+/MJPEG
Number of video streams	2
Bit rate range	32 kbps – 8 Mbps
IR illuminator range	30 m
Video enhancement functions	3D-DNR, DWDR, BLC, HLC
Mechanically switching IR filter	Yes
Gain	Automatic/Preset
Alarm events	Motion detection, dynamic analysis, video tampering
Intelligent image analysis	No
Corridor mode	No
ROI	Yes (1)
ANR function	No
Recording	NAS (NFS/SMB/CIFS), FTP (screenshots)
Network interface	RJ-45 10/100 Base-T
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Standards	ONVIF (S,G profile), PSIA, CGI, ISAPI
Housing materials	Metal and plastics
IP rating	IP67
Power supply	12 VDC ± 25%, PoE 802.3af
Power consumption	Max: DC 12V – 5W; PoE – 7W
Operating temperature range	-30°C…+60°C
Dimensions	Φ110 × 93 mm
Weight	0.35 kg
