Description

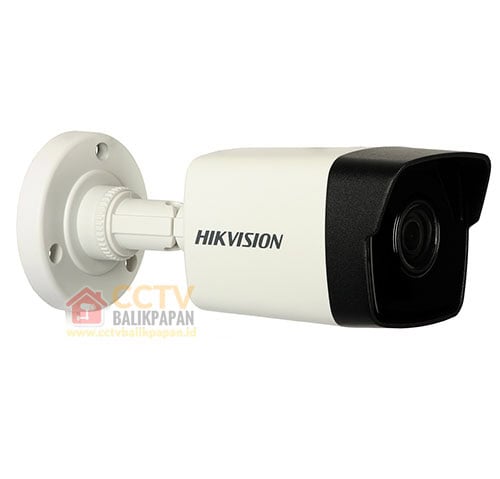

Name	HIKVISION DS-2CD1043G0-I

Video system	IP

Direction adjustment	3-axis
Image sensor	1/3″ Progressive Scan CMOS
Sensitivity	0.028 lx @ (F2.0, AGC ON), 0 lx in IR mode
Resolution	2560 x 1440 pixels
Frame rate	20 fps at 2560 x 1440 / 25 fps at lower resolutions
Lens	2.8 mm @ F2.0 / 100^o
Compression	H.265+/H.265/H.264+/H.264/MJPEG
Number of video streams	2
Bit rate range	32 kbps – 8 Mbps
IR range	up to 30 m
Video processing	3D-DNR, DWDR, BLC
Mechanically switching IR filter	Yes
Gain	Automatic/Preset
Alarm events	Motion detection, video tampering
Intelligent image analysis	Not implemented
Corridor mode	No
ROI	1 region
ANR	No
Recording	NAS (NFS/SMB/CIFS), FTP (screenshots)
Network interface	RJ-45 10/100Base-T
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards	ONVIF (S, G profiles), PSIA, CGI, ISAPI
Housing material	Aluminum alloy, plastics
IP rating	IP67
Power	12 VDC ± 25% PoE IEEE 802.3af
Power consumption	5 W / 7 W (PoE)
Operating temperature range	-30°C …+50°C
Dimensions	69 x 66 x 172 mm
Weight	0.28 kg
