Description
Product Description
CAMERA
Image Sensor – 1 / 3″ Progressive Scan CMOS
Signal System – PAL / NTSC
Effective Pixels – 1920(H)*1080(V)
Min. Illumination – 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter speed – 1/25(1/30) s to 1/50,000 s
Lens – 2.8-12mm @ F1.4 Angle of view: 92 – 32
Lens Mount – φ14
Angle Adjustment – Pan: 0 – 355, Tilt: 0 – 180, Rotation: 0 – 355
Day & Night – ICR
Wide dynamic range – 120 dB
Synchronization – Internal synchronization
Video Frame Rate – 1080p@25fps/1080p@30fps
HD Video Output – 1 Analog HD output
CVBS Output – 1Vp-p Composite Output(75Ω / BNC)
S / N Ratio – More than 52dB
Menu
Scene – Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID – On/off (15 characters, position programmable)
AGC – Support
D/N Mode – Color/BW/EXT
White Balance – ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask – On/Off, maximum 8 zones
Motion Detection – On/Off, maximum 4 zones
BLC – Support<br >Anti-flicker – On/off
Language – English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,Portuguese, Dutch, Turkish, Hebrew and Arabic
Function – Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
General
Working Temperature / Humidity – -20 C – 60 C (-4 F – 140 F) Humidity 90% or less (non-condensing)
Power Supply – 12 VDC ; -A: 12 VDC, 24 VAC
Power Consumption – 12 VDC: Max. 4.5W ; 24 VAC: Max. 6.5W
IR Range – Up to 30m
Communication – Up the coax(need UTC controller) Protocol: Pelco-C(Coaxitron)
Dimensions – φ136 x 101 mm (φ5.35″ x 3. 98″)
Weight – 380 g (0.84 lb)
Box Contains

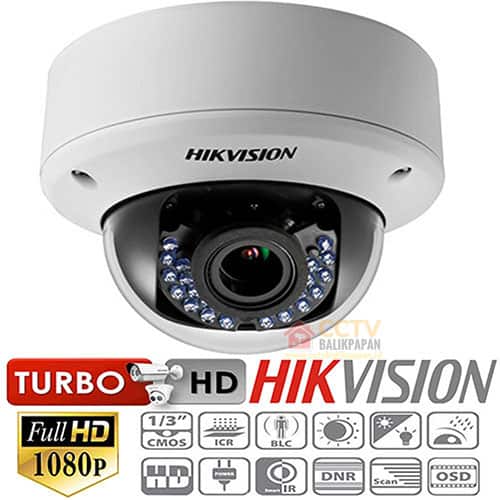

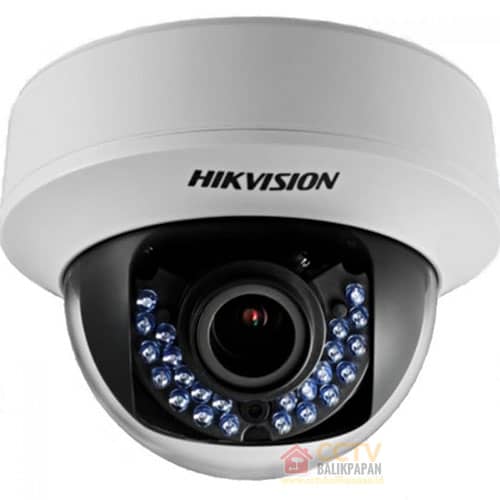

1 x DS-2CE56D5T-VFIR
Instructions
Lihat juga : https://cctvbalikpapan.id/produk/kamera-indoor-2mp-hikvision-ds-2ce56d5t-airz/
