Description

Model code	DS-2CE16C5T-VFIR3
Chip Inch Size “	1/3
Colour Type	True Day / Night
Resolution TVL	720 p
Digital (DSP)	Yes
HD	Yes
Specialist Types	Infrared
Electrical Specifications	Voltage: 12 V DC / 24 V AC Power Consumption: 4 W
Motion Activated	Yes
Focal Length mm	2.8 ~ 12
Wide Dynamic Range	Yes
Picture Elements HxV	1305 x 1049
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	PAL: 1 / 50 ~ 1 / 50,000 s, NTSC: 1 / 60 ~ 1 / 50,000 s
S/ N (Signal/ Noise) Ratio dB	> 62
Synchronisation	Internal
Signal Mode	PAL / NTSC
Zoom	Yes
Video Output	1Vp-p Composite Output(75 ohms / BNC)
Physical Specifications	Dimension mm: 105 x 87 x 267 Weight g: 1,350
Environmental Specifications	Operating Temperature ^oC: -20 ~ +60 C (-4 ~ +140 F) Protection: IP66 Operating Humidity %: 0 ~ 90

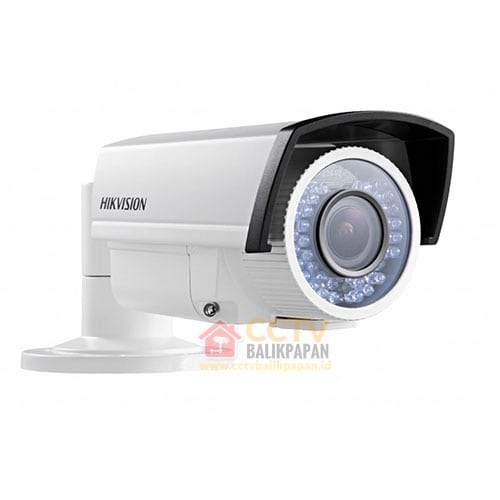

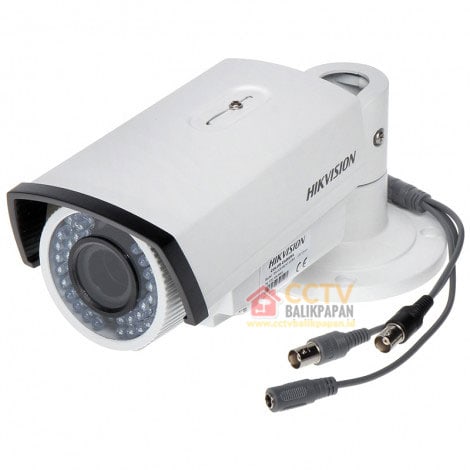

Additional info	Hikvision DS-2CE16C5T-VFIR3 is a true day/night CCTV camera. It features HD720P video output, 2.8 – 12mm vari-focal lens, smart IR & low illumination.
