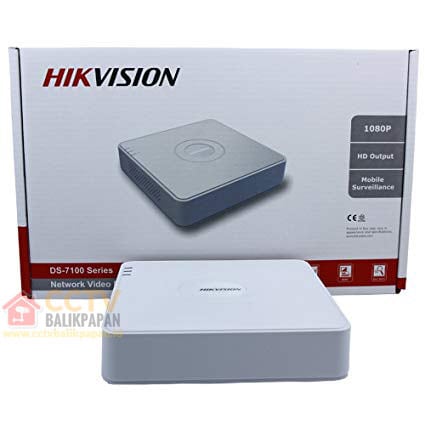

DVR HIKVISION 7104HGHI-F1 4 CHANEL

Description

Spesifikasi :

Video/Audio Input

• Audio Input : 1-ch
• Video Compression : H.264,H.264+
• Analog and HD-TVI video input : 4-ch BNC interface (1.0Vp-p, 75 ?)
• Supported camera types : Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
• Support AHD input : 720P/25Hz, 720P/30Hz,

support CVBS input

• Video Input Interface : BNC (1.0 Vp-p, 75?)
• Audio Compression : G.711u
• Audio Input Interface : RCA (2.0 Vp-p, 1 k?)
• Two-way Audio : 1-ch, RCA (2.0 Vp-p, 1 K?) (using audio input)

Video/Audio Output

• HDMI/VGA Output : 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
• Recording resolution : When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF, When 1080p Lite
• mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame Rate: Main stream: When 1080p Lite mode not enabled:
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), When 1080p Lite mode enabled:1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• Video Bit Rate : 32 Kbps ~ 4 Mbps
• Stream Type : Video/Video&Audio
• Audio Output : 1-ch RCA(Linear, 1k?)
• Audio Bit Rate : 64kbps
• Dual Stream : Support
• Playback Resolution : 1080p lite/720p/WD1/4CIF/VGA/CIF
• Synchronous Playback : 4-ch

Network management

• Remote connections : 32
• Network protocols : TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Hard Disk Driver

• Interface Type : 1 SATA Interface
• Capacity : Up to 6 TB capacity for each disk

External Interface

• Network Interface : 1; 10M / 100M self-adaptive Etherne interface
• USB Interface : 2 USB 2.0 Interfaces

General

• Power Supply : 12V DC
• Consumption : ? 8W
• Working Temperature : -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
• Working Humidity : 10% ~ 90%
• Dimensions : 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
• Weight : ? 0.8 kg / 1.8 lb(without hard disks)
