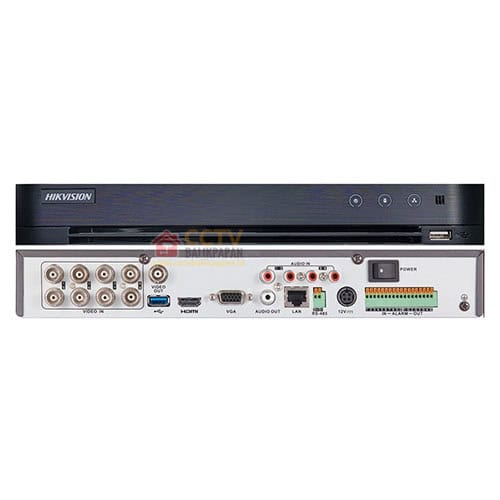

DVR HIKVISION 7208HUHI-K1 8 CHANNEL

Rp 4,125,000

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
8 MP/5 MP/4 MP HDTVI video input and live view for DS-7208HUHI-K1, and 5 MP/4 MP for DS-7204HUHI-K1
HDMI output at up to 4K (3840 × 2160) resolution for DS-7208HUHI-K2
Long distance transmission over UTP and coaxial cable
4/8-ch synchronous playback

Description

Video/Audio Input
Audio Input:		8-ch
Video Compression:		H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:		8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output
CVBS Output:		1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:		VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution:		8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-10 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:		8-ch

Network management
Remote connections:		64
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 8 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:		1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:		1; standard RS-485 serial interface, half-duplex
Alarm Input:		8-ch
Alarm Output:		4-ch
