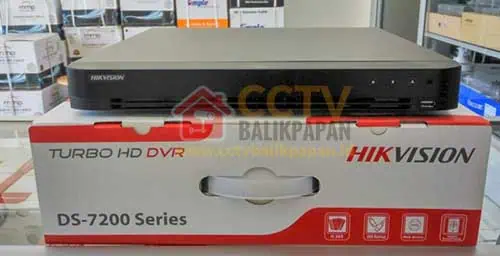

DVR HIKVISION 7216HQHI-K2 16 CHANEL

Rp 3,600,000

Turbo HD DVR

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
Up to 4 MP lite resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K2
Long distance transmission over UTP and coaxial cable
8/16-ch synchronous playback

Description

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:		16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output
CVBS Output:		1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:		HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution:		When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-6 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF

Hard Disk Driver
Interface Type:		2 SATA Interfaces
Capacity:		Up to 10 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:		1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:		1; standard RS-485 serial interface, half-duplex
