Description

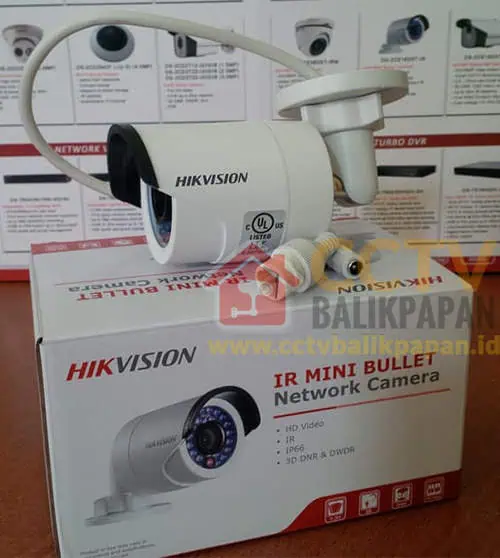

Name	HIKVISION DS-2CD2010F-I

Video system	IP

Compression	H.264/H.264+/MJPEG
Resolution	1280×960
Dual-stream	Yes
Frame rate	25 fps at 1280×960 or lower res.
Image sensor	1/3″ Progressive Scan CMOS
Sensitivity	0.01 lx @F1.2 with AGC 0 lx in IR mode
Lens	4 mm
Horizontal viewing angle	70^o
Mechanically switching IR filter	Yes
IR range	up to 30 m
Brightness control	Yes
Sharpness control	Yes
Video processing	3D-DNR, D-WDR, BLC
Gain	Automatic/Preset
Alarm events	Motion detection, dynamic analysis, tampering
Intelligent image analysis	Yes
Line crossing	1 line
Intruder detection	1 region
ROI	1 region
Recording	Remote FTP server, NAS server
Network interface	RJ-45 10/100Base-T
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards	Onvif, PSIA,CGI, ISAPI
Power	12 VDC ± 10% PoE IEEE 802.3af
Power consumption	5 W (max 7 W with IR)
Startup temperature range	-10°C … 40°C
Operating temperature range	-30°C … 60°C
Dimensions	60 × 76 × 139 mm
Weight	0.50 kg
