IP Camera 2MP Hikvision DS-2CD2720F-IS

DS-2CD2720F-I(S)

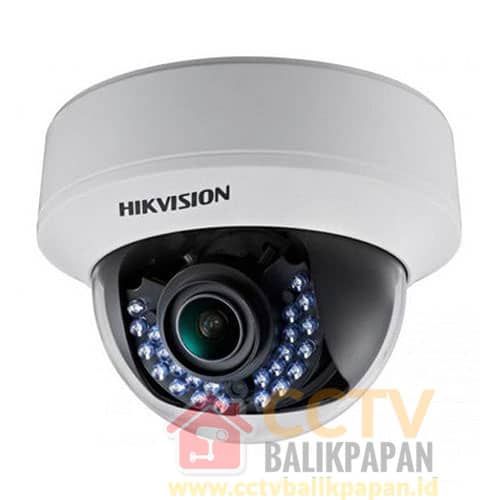

2 Megapixel CMOS Vandal-proof Network Dome Camera

1/3″ Progressive Scan CMOS

0.01lux @(F1.2,AGC ON) ,0 Lux with IR
0.014lux @(F1.4,AGC ON), 0 Lux with IR

1/25(1/30) s to 1/100,000 s

2.8 – 12 mm @ F1.4,Angle of view: 113°-33.8°

Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355°

Φ14

IR cut filter with auto switch

3D DNR

Digital WDR

H.264/ MJPEG

BaseLine Profile/Main Profile

32 Kbps – 8 Mbps

G.711/G.726/MP2L2

64Kbps(G.711) / 16Kbps(G.726)/ 32~128Kbps(MP2L2)

Yes

1920×1080

50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)

Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

Yes, zone optional

Yes, up to 4 configurable areas

NAS

Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full , Storage error

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

User Authentication, Watermark

ONVIF, PSIA, CGI, ISAPI

1 RJ45 10M/100M Ethernet interface

Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)

12 V DC ± 10%
PoE (802.3af)

Max. 5.5 W

IP66

IEC60068-275Eh, 20J; EN50102, up to IK10

30 meters

Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)

1000g
