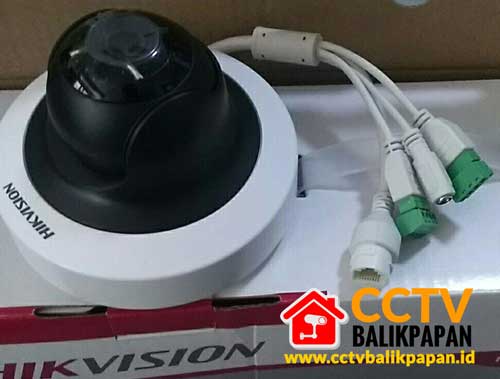

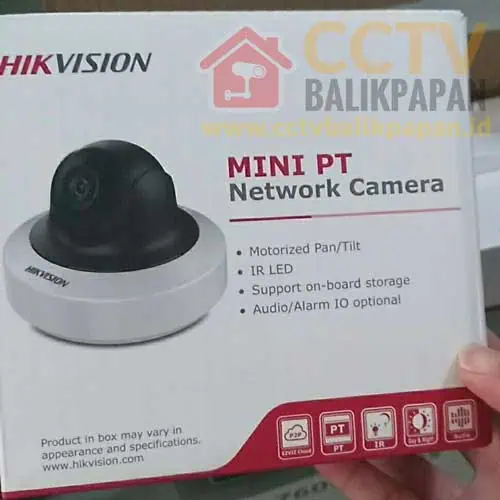

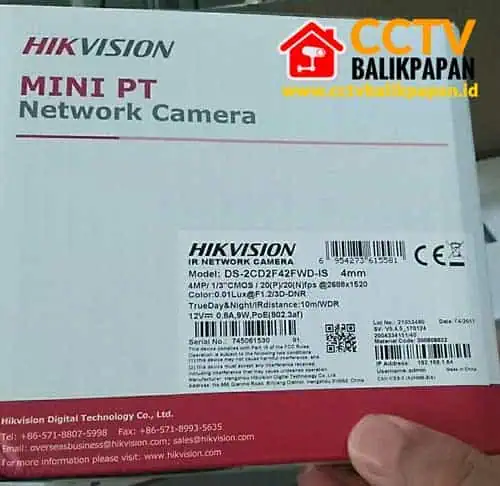

Kamera CCTV Hikvision 4MP DS-2F42FWD-IS

Rp 1,609,000

Up to 4 megapixel (2688×1520) high resolution
Full HD1080p video
Dual stream
120dB Wide Dynamic Range
Pan & tilt rotation
Support on-board storage, up to 128GB
DC12V & PoE
SupportH.264+
Up to 10m IR range
AUDIO/ALARM

Description

Spesifikasi Lengkap Kamera CCTV Hikvision 4MP DS-2F42FWD-IS

Camera
Image Sensor:	1/3″ Progressive Scan CMOS
Min. Illumination:	0.01Lux (at) F1.2, AGC ON , 0.028Lux (at) F2.0, AGC ON, 0 Lux with IR
Shutter time:	1/3 s to 1/100,000 s
Lens:	4mm(2.8mm, 6mm) (at) F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount:	M12
Adjustment Range:	Pan: -90° ~ 90°, Tilt: 0° ~ 75°
Day& Night:	IR cut filter with auto switch
Wide Dynamic Range:	120 dB
Digital noise reduction:	3D DNR
Compression Standard
Video Compression:	H.264/MJPEG/H.264+
H.264 code profile:	Main Profile
Video bit rate:	32Kbps~16Mbps
Dual Stream:	Yes
Max. Image Resolution:	2688 × 1520
Frame Rate:	50Hz: 20fps (2688 x 1520), 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Frame Rate:	60Hz: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings:	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:	Yes, zone configurable
ROI:	Support
Network
Network Storage:	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio	1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Communication Interface:	1 RJ45 10M / 100M Ethernet interface
alarm	1x alarm I/O
On-board storage:	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:	Yes
General
Operating Conditions:	-10 °C ~ 40 °C (14 °F ~ 104 °F)
Operating Conditions:	Humidity 90% or less (non-condensing)
Power Supply:	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:	Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
IR Range:	10 meters
Dimensions:	Φ119.93 × 87.08mm
Weight:	500g (1.1lbs)
