Description

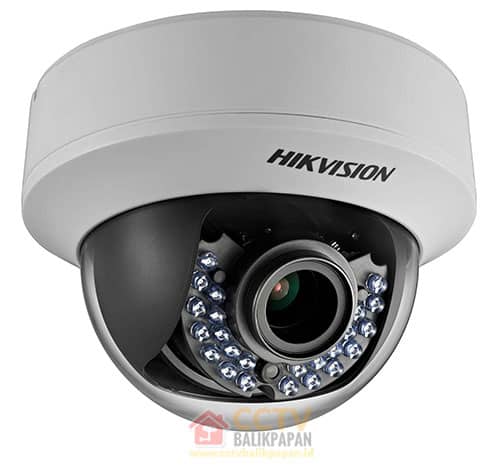

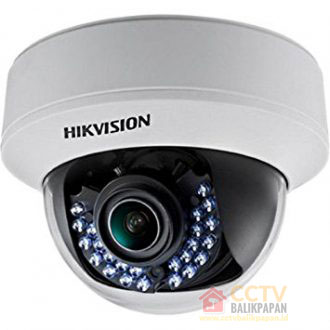

Camera :
- Image Sensor : 1/3″ Progressive Scan CMOS
- Signal System : PAL/NTSC
- Effective Pixels : 1305 (H) 1049 (V)
- Min. Illumination : 0.001 Lux @(F1.2,AGC ON), 0 Lux with IR
- Lens : 2.8-12mm @ F1.4
- Angle of view : 78 – 28
- Lens Mount : M12
- Adjustment Range : Pan : 0 – 355, Tilt : 0 – 80, Rotation : 90
- Day& Night : IR cut filter with auto switch
- Synchronization : Internal Synchronization
- Video Output : 1Vp-p Composite Output (75/BNC)
- S/N Ratio : More than 62 dB
- Up the Coax : Support
Menu :
- Auto Gain : Low/Middle/High/Off
- D/N Mode : Color/ BW/ EXT
- Auto White Balance : Auto / Manual
- Private Mask : On/Off, maximum 8 zones
- Motion Detection : On/Off, maximum 4 zones
- Language : English/Chinese
- Function : Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror
General :
- Operating Conditions : -30 C ~ 60 C (-22 F ~ 140 F)
- Humidity 90% or less (non-condensing)
- Power Supply : 12 V DC 10%
- (-A series support 24 V AC 10%, 12 V DC 10%)
- Power Consumption : 12 VDC : Max. 3.5W
- 24 VAC : Max. 4.5W
- Impact Protection : IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
- Weather Proof : IP66
- IR Range : Up to 40m
