Description

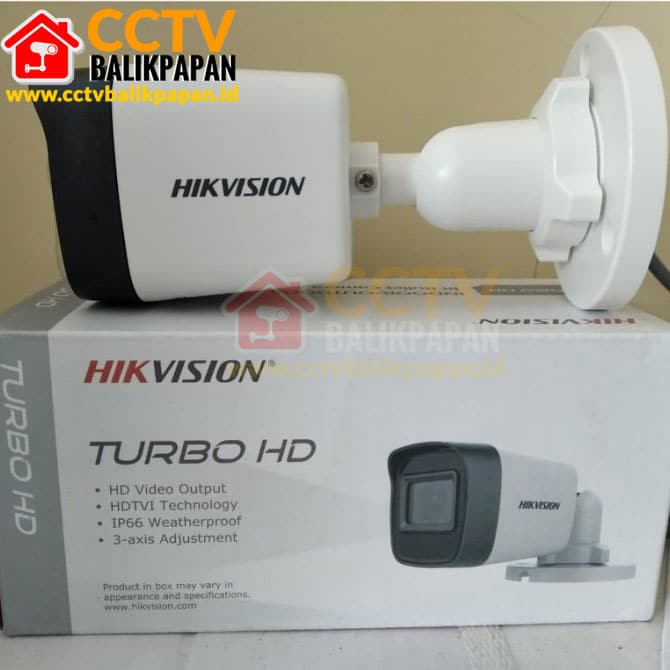

Spesifikasi Kamera CCTV Hikvision Outdoor 2MP DS-2CE16D0T-EXIPF
Camera |
Image Sensor |
2MP CMOS |
Signal System |
PAL/NTSC |
Resolution |
1920 (H) × 1080 (V) |
Frame Rate |
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC |
Min. Illumination |
0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
Ukuran Lensa |
2.8 mm, 3.6 mm Fixed Lens |
Field of View |
2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 81°, vertical FOV: 42°, diagonal FOV: 100° |
Lens Mount |
M12 |
Day & Night |
ICR |
WDR (Wide Dynamic Range) |
Digital WDR |
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Menu |
Image Mode |
STD/HIGH-SAT |
AGC |
YES |
Day/Night |
Mode Auto/Color/BW (Black and White) |
White Balance |
Auto |
AE (Auto Exposure) Mode |
DWDR, BLC, Global |
Noise Reduction |
2D DNR |
Language |
English |
Function |
Brightness, Mirror, Smart IR, Sharpness |
Interface |
Video Output Switchable |
TVI/AHD/CVI/CVBS |
Operating Conditions |
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
Power Supply |
12 VDC ± 25% |
Consumption Max. |
3.3 W |
Protection Level |
IP66 |
Material |
Plastic |
IR Range |
Up to 20 m |
Communication |
HIKVISION-C |
Ukuran |
138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″) |
Berat |
Approx. 145 g (0.32 lb.) |
Untuk Paket Lengkap CCTV Hikvision beserta pemasangannya bisa membuka halaman berikut https://cctvbalikpapan.id/produk/paket-cctv-4-kamera-hikvision-2-0-megapixel-1080p-full-hd/.
